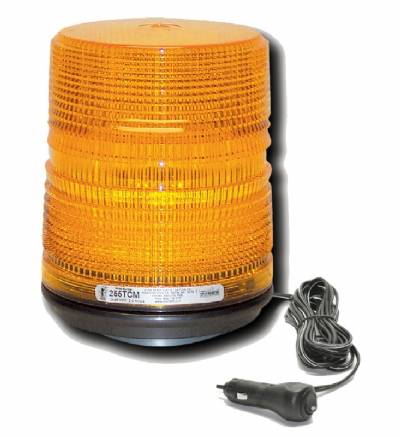

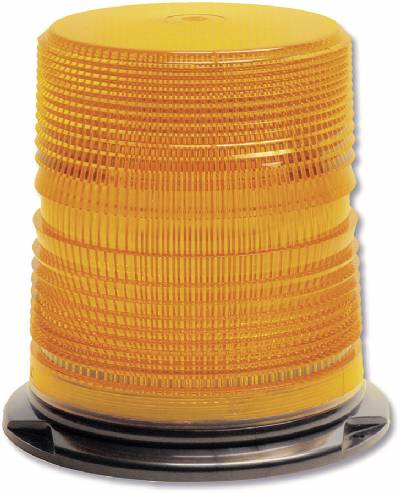

The 255TC series offers field selectable flash patterns of double flash or quad flash via an internal jumper. The virgin Lexan® lens easily twists on/off the durable and lightweight polycarbonate plastic, universal mount, flanged base. The modular circuit is completely encapsulated for increased shock and weather resistance and is also protected with a low voltage shutdown feature. Ships complete with mounting hardware and instructions.
- Field selectable flash pattern via internal jumper: Standard Quad Flash or Selectable Double Flash
- Features Virgin Lexan*, Twist-Off Lens
- Features a durable and lightweight Polycarbonate plastic, universal flange base
- Completely encapsulated circuit for increased weather and shock resistance
- Automatic low voltage shutdown below 9.5V DC
- Operates automatically 12V DC - 48V DC
- Amp Draw: 1.2A@12V DC, .5A@24V DC, .3A@36V DC, .175A@48V DC
- Joule Rating: 7 Joule Double Flash - 10 Joule Quad Flash
- Flash Rate: 80 DFPM / 65 QFPM
- Lens Colors: Amber, Red, Clear, Blue
- SAE Approvals: J1318 Class 2
- Model Numbers / Dimensions:
- 255TC, 255TCM, 255TCV: 6-11/16" tall x 6-13/32" dia.
