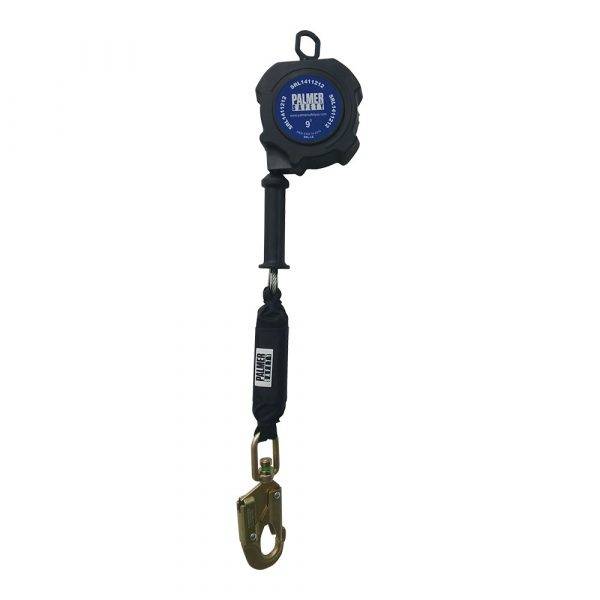

Leading Edge Self Retractable Lifeline w/ Cable

SRD 9’ Leading Edge Single Galvanized Cable with Small hook, 9’ retractable galvanized cable, swivel top composite housing, 3/4” load indicator hook, 1/2” carabiner included. Black housing. Meets or exceeds ANSI/ASSE Z359.14-2014 Class B SRL-LE.

Key Features

PHYSICAL PARAMETERS:

• Composite housing.
• Extremely compact, durable and lightweight plastic
  casing.
• Has swivel anchorage eye at anchorage end. Swivel steel
  snap hook with load indicator at attachment end (gate
  strength 3600 lbs.).
• Galvanized steel wire rope 7/32”.

LENGTH:

9 ft.

CABLE:

Material: Galvanized steel wire rope diameter of 7/32”

MINIMUM BREAKING STRENGTH:

3300 lbs.

NORM:

Meets or exceeds ANSI/ASSE Z359.14-2014 Class B SRL-LE.

VITAL TEST COMPLIANCE:

Static Strength: 3000 lbs. for 1 minute. Dynamic Strength:
300 lbs. mass subjected to a 4’ free fall. SRL lock and remain
lock until released.
Dynamic Performance: 282 lbs. mass subjected to a zero
free fall with extension of 36” lifeline. Braking force less than
1800 lbs. Average braking force less than 900 lbs. and arrest
distance less than 54”.

WEIGHT:

5.11 lbs. ± 0.02 lbs.
