3M™ Raised Pavement Marker

Product ID 3M-290

Price: $4.99

Quantity Pricing

Quantity

Price

100+

$2.59

Quantity

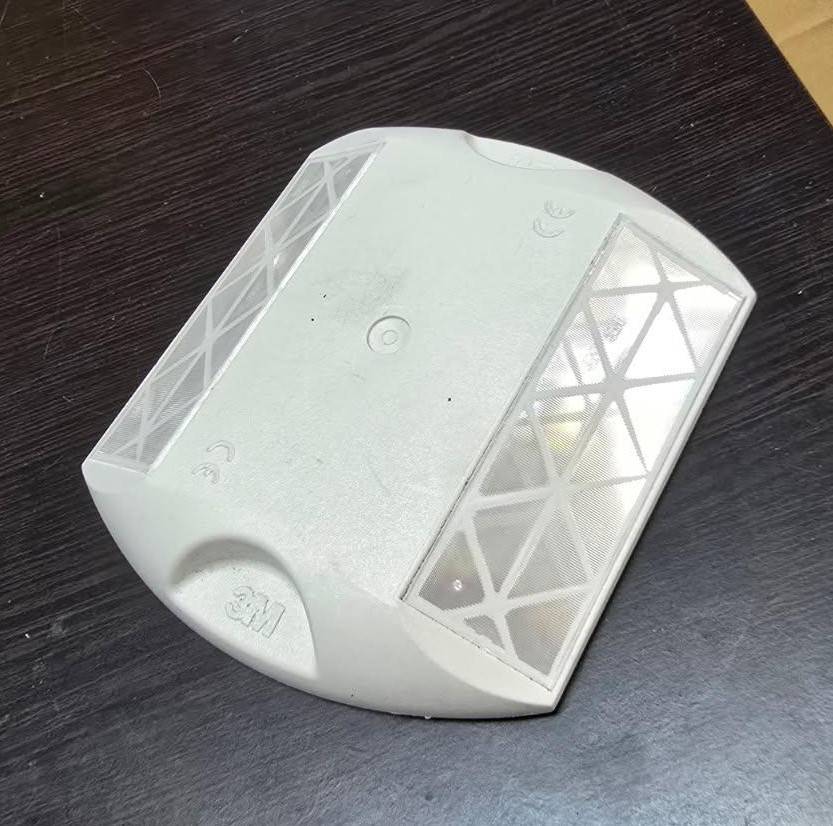

3M™ Raised Pavement Marker - White/White

Series 290

Highlights

3M™ Raised Pavement Marker Series 290 are highly visible at night and in rainy conditions
Full-cube microprism technology optics provide excellent reflectivity
Durable construction
Rumble effect for added awareness
Variety of color combinations

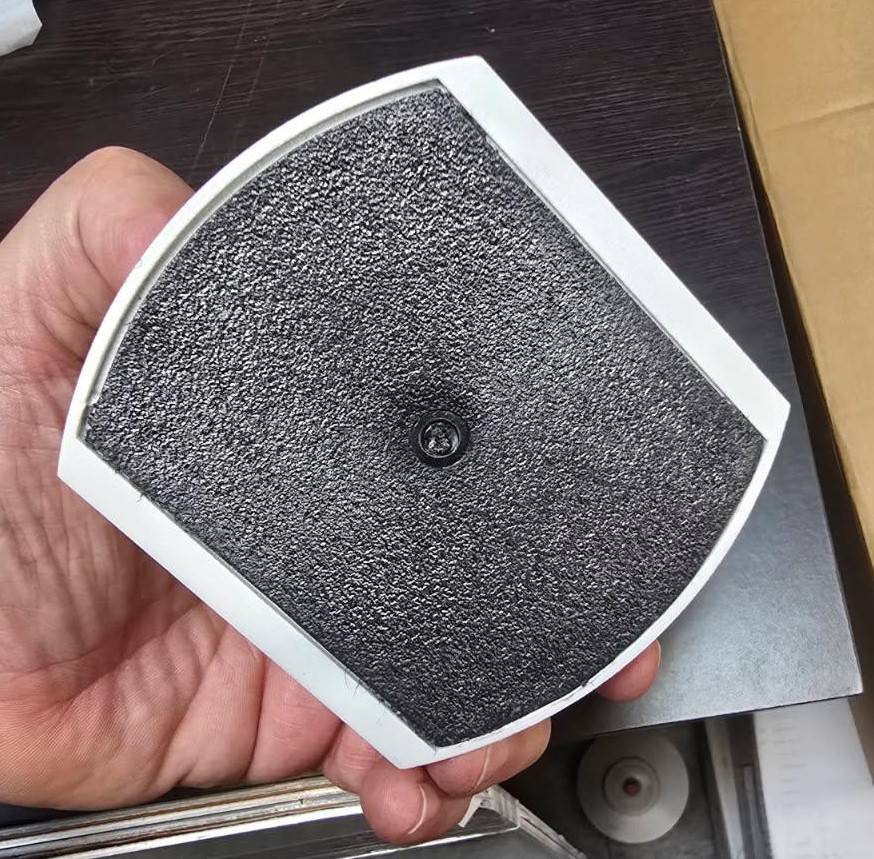

Available with pressure sensitive adhesive
Engineered body with molded-in colors and finger grips for easy application

These highly-reflective, durable markers feature 3M™ Diamond Grade™ microprismatic optics and a ceramic lens coating to provide resistance to abrasion and cracking. Install them on concrete or asphalt with the supplied pressure-sensitive adhesive pad. Finger grips make handling easy and installation simple.

3M™ Raised Pavement Marker Series 290 (“Markers”) are designed for application on asphalt and Portland cement concrete road surfaces. The Markers have been designed to provide highly effective, long-term nighttime visibility in non-snow plow regions. Except for the color requirements for green lens, the Markers meet the requirements of ASTM D4280. The Marker bodies are made from an engineered thermoplastic that provides impact resistance and weatherability. The Markers include retroreflective elements that provide wet retroreflectance, dry retroreflectance, long-term nighttime visibility and are available in white, yellow, red, blue, or green. The Markers have been designed to be applied directly to pavement surfaces and are compatible with commercially available bitumen and epoxy adhesives. The use of any other type of adhesive should be thoroughly evaluated prior to any large-scale application. The Markers may also be fitted with pressure sensitive adhesive (PSA) pads. To use Markers with PSA pads, a liner is removed from the adhesive pad on the bottom of the Marker before it is placed onto the road surface.

Typical properties

Adhesive Type	Permanent
Application	Curbs, Gore markings, Long lines, Ramps, Lane Lines, Spot delineation, Construction work zones
Average Daily Traffic	Medium, High, Low
Body Color	Blue, Red, Yellow, Green, White
Brands	3M™
Construction	Polycarbonate body & lens
Directionality	Two-way, One-Way
Lens Color	Blue, Red, Yellow/Red, Green, White/Yellow, Yellow, White, White/Red
Liner	Yes
Minimum Application Temperature (Fahrenheit)	60 ℉
Performance Features	Wet Reflectivity, Dry Reflectivity
Product Code	290-W, 290-Y, 290-WR, 290-R, PSA-290-W, PSA-290-WY, 290-WY, PSA-290-YR, PSA-290-WR, 291-Y, PSA-291-Y, PSA-291-YR, 291YR, 292-R, 297-G, 290-2W, 290-2R, PSA-290-2W, 291-2Y, PSA-292-2R, 292-2R, 295-2B, PSA-295-2B, PSA-297-2G, 297-2G, 290 PSA-291-2Y
Product Color	Blue, Red, Yellow, Green, White
Product Series	290
Saleable Unit	100 per carton, 100 par carton
Snowplow-safe	No
Surface Type	Asphalt, Concrete

Overall Height (Imperial)	0.625 in, 0.63 in, 3.51 in
Overall Height (Metric)	15.88 mm, 15.9 mm, 89.2 mm
Overall Length (Imperial)	3.5 in, 4 in
Overall Length (Metric)	89.2 mm, 101.6 mm
Overall Width (Imperial)	3.51 in, 4 in
Overall Width (Metric)	89.154 mm, 101.6 mm
